Migrate from Vert.x OIDC to Quarkus OIDC

Learn how to migrate your Vert.x OIDC application to Quarkus and choose to either retain Vert.x OIDC or replace it with Quarkus OIDC.

We will start with an original Vert.x Securing a Web Application with OAuth2/OpenID Connect how-to tutorial which shows how a GitHub OAuth2 application can be implemented with Vert.x OIDC. You may have already worked through this tutorial before as a Vert.x OIDC user.

Even though GitHub supports OAuth2 only, we will use a Vert.x OIDC term. OIDC is built on top of OAuth2 and the Vert.x Securing a Web Application with OAuth2/OpenID Connect tutorial also talks about OIDC.

Next, you will learn how to migrate the Vert.x application to Quarkus, while completely retaining the Vert.x OIDC code.

Finally, an option of replacing the Vert.x OIDC with Quarkus OIDC will be explained for you to analyze and consider implementing it.

Vert.x OIDC on Vert.x

Let’s start with the Securing a Web Application with OAuth2/OpenID Connect how-to tutorial.

Create the project, you should end up with a pom.xml which contains the following properties and dependencies:

<project>
  <groupId>howto</groupId>
  <artifactId>oauth-oidc</artifactId>
  <version>1.0.0-SNAPSHOT</version>

  <properties>
    <! ... -->
    <vertx.version>5.0.16</vertx.version>
    <main.verticle>howto.oauth_oidc.MainVerticle</main.verticle>
    <launcher.class>io.vertx.launcher.application.VertxApplication</launcher.class>
  </properties>

  <dependencyManagement>
    <dependencies>
      <dependency>
        <groupId>io.vertx</groupId>
        <artifactId>vertx-stack-depchain</artifactId>
        <version>${vertx.version}</version>
        <type>pom</type>
        <scope>import</scope>
      </dependency>
    </dependencies>
  </dependencyManagement>

  <dependencies>
    <dependency>
      <groupId>io.vertx</groupId>
      <artifactId>vertx-launcher-application</artifactId>
    </dependency>
    <dependency>
      <groupId>io.vertx</groupId>
      <artifactId>vertx-web-client</artifactId>
    </dependency>
    <dependency>
      <groupId>io.vertx</groupId>
      <artifactId>vertx-web-templ-handlebars</artifactId>
    </dependency>
    <dependency>
      <groupId>io.vertx</groupId>
      <artifactId>vertx-web</artifactId>
    </dependency>
    <dependency>
      <groupId>io.vertx</groupId>
      <artifactId>vertx-auth-oauth2</artifactId>
    </dependency>
    <! ... -->
  </dependencies>
  <! ... -->
</project>

Register the GitHub application as described in the Securing a Web Application with OAuth2/OpenID Connect tutorial, the only difference is that you should register a http://localhost:8080/login callback url, instead of http://localhost:8080/callback.

The final version of the MainVerticle Java class looks like this:

package howto.oauth_oidc;

import io.vertx.core.Future;
import io.vertx.core.VerticleBase;
import io.vertx.ext.auth.authorization.PermissionBasedAuthorization;
import io.vertx.ext.auth.oauth2.OAuth2Auth;
import io.vertx.ext.auth.oauth2.authorization.ScopeAuthorization;
import io.vertx.ext.auth.oauth2.providers.GithubAuth;
import io.vertx.ext.web.Router;
import io.vertx.ext.web.handler.AuthorizationHandler;
import io.vertx.ext.web.handler.OAuth2AuthHandler;
import io.vertx.ext.web.handler.SessionHandler;
import io.vertx.ext.web.sstore.LocalSessionStore;
import io.vertx.ext.web.templ.handlebars.HandlebarsTemplateEngine;

public class MainVerticle extends VerticleBase {

    private static final String CLIENT_ID = System.getenv("GITHUB_CLIENT_ID");
    private static final String CLIENT_SECRET = System.getenv("GITHUB_CLIENT_SECRET");

    @Override
    public Future<?> start() {

        HandlebarsTemplateEngine engine = HandlebarsTemplateEngine.create(vertx); (1)

        Router router = Router.router(vertx); (2)

        router.route().handler(SessionHandler.create(LocalSessionStore.create(vertx))); (3)

        router.get("/").handler(ctx -> { (4)
            // we pass the client id to the template
            ctx.put("client_id", CLIENT_ID);
            // and now delegate to the engine to render it.
            engine.render(ctx.data(), "views/index.hbs").onSuccess(buffer -> {
                ctx.response().putHeader("Content-Type", "text/html").end(buffer);
            }).onFailure(ctx::fail);
        });

        OAuth2Auth authProvider = GithubAuth.create(vertx, CLIENT_ID, CLIENT_SECRET); (5)

        router.get("/protected").handler(

                OAuth2AuthHandler.create(vertx, authProvider, "http://localhost:8080/login")
                        .setupCallback(router.route("/login")).withScope("user:email")) (6)
                .handler(AuthorizationHandler.create(PermissionBasedAuthorization.create("user:email"))
                        .addAuthorizationProvider(ScopeAuthorization.create(" "))) (7)
                .handler(new ProtectedProfileHandler(authProvider, engine)); (8)

        return vertx.createHttpServer().requestHandler(router).listen(Integer.getInteger("port", 8080))
                .onSuccess(server -> System.out.println("HTTP server started on port: " + server.actualPort()));
    }
}
1 Initialize Handlebars templating engine.
2 Create Vert.x router.
3 Register Vert.x OIDC session handler which keeps the session details in memory.
4 Create a route handler to support a welcome page at the http://localhost:8080 address.
5 Initialize OAuth2 GitHub provider with a Vert.x instance, and GitHub client id and secret properties.
6 Register OAuth2 handler to secure the http://localhost:8080/protected endpoint. This handler uses the GitHub provider to authenticate users and requests a user:email scope when redirecting users to GitHub. The handler is set up with a callback route which uses a returned authorizaion code and the provided http://localhost:8080/login redirect URL to complete the authorization code flow and acquire a GitHub access token.
7 Do not allow access to the http://localhost:8080/protected endpoint if the GitHub access token does not have a user:email scope. Please note that while the PermissionBasedAuthorization capability to constrain access tokens is great, applying it in the context of this application is not necessary: authorization code flow access tokens, and GitHub access tokens in particular, are not meant to control access to the application that acquired them but for this application to use them on behalf of the authenticated user to access another API, such as GitHub API, as indeed, is demonsrtated below.

The ProtectedProfileHandler Java class returns a list of user emails and looks exactly as shown in the Securing a Web Application with OAuth2/OpenID Connect tutorial:

package howto.oauth_oidc;

import io.vertx.core.Handler;
import io.vertx.ext.auth.authentication.TokenCredentials;
import io.vertx.ext.auth.oauth2.OAuth2Auth;
import io.vertx.ext.web.RoutingContext;
import io.vertx.ext.web.client.WebClient;
import io.vertx.ext.web.codec.BodyCodec;
import io.vertx.ext.web.templ.handlebars.HandlebarsTemplateEngine;

class ProtectedProfileHandler implements Handler<RoutingContext> {

    private final OAuth2Auth authProvider;
    private final HandlebarsTemplateEngine engine;

    ProtectedProfileHandler(OAuth2Auth authProvider, HandlebarsTemplateEngine engine) {
        this.authProvider = authProvider;
        this.engine = engine;
    }

    @Override
    public void handle(RoutingContext ctx) {
        authProvider.userInfo(ctx.user())
                .onFailure(err -> {
                    ctx.session().destroy();
                    ctx.fail(err);
                }).onSuccess(userInfo -> {
                    WebClient.create(ctx.vertx()).getAbs("https://api.github.com/user/emails") (1)
                            .authentication(new TokenCredentials(ctx.user().<String>get("access_token"))) (2)
                            .as(BodyCodec.jsonArray()).send().onFailure(err -> {
                                ctx.session().destroy();
                                ctx.fail(err);
                            }).onSuccess(res -> {
                                userInfo.put("private_emails", res.body());
                                // we pass the client info to the template
                                ctx.put("userInfo", userInfo); (3)
                                // and now delegate to the engine to render it.
                                engine.render(ctx.data(), "views/protected.hbs").onSuccess(buffer -> {
                                    ctx.response().putHeader("Content-Type", "text/html").end(buffer);
                                }).onFailure(err -> {
                                    ctx.session().destroy();
                                    ctx.fail(err);
                                });
                            });
                });
    }
}
1 Fetch the user emails with Vert.x WebClient
2 Use the GitHub access token to access GitHub API
3 Update UserInfo with a JSON array containing private emails and pass it to the protected.hbs template.

Finally, create index.hbs and protected.hbs templates in the src/main/resources/views directory, copy their content from the Securing a Web Application with OAuth2/OpenID Connect tutorial.

Compile and run the application as java -jar target/oauth-oidc-1.0.0-SNAPSHOT-fat.jar, go to http://localhost:8080 and follow the Securing a Web Application with OAuth2/OpenID Connect tutorial to login to GitHub and get your GitHub account email(s) displayed.

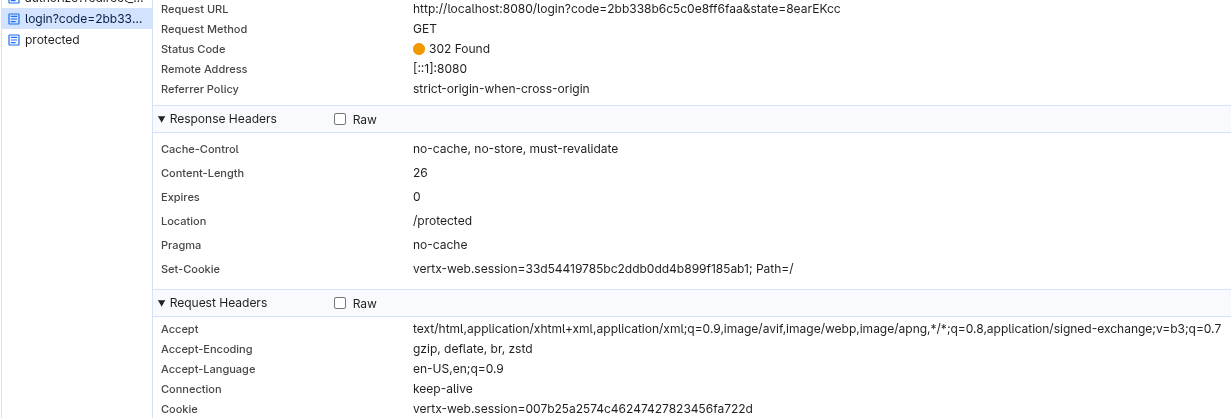

When you accessed the http://localhost:8080/protected page the first time, the following redirects happened:

  • You were redirected by Vert.x OIDC to GitHub to login.

  • You were redirected by GitHub to the http://localhost:8080/login callback route handler which completed the authorization code flow and acquired the GitHub access token.

  • You were redirected by Vert.x OIDC to the original request URL, http://localhost:8080/protected.

Vert.x OIDC on Quarkus

We have worked through the original Securing a Web Application with OAuth2/OpenID Connect tutorial in the Vert.x OIDC on Vert.x section, and now we can start planning moving the Vert.x applicaton to Quarkus, while retaining Vert.x OIDC.

Let’s update pom.xml as follows:

<project>
  <groupId>howto</groupId>
  <artifactId>quarkus-oauth-oidc</artifactId>
  <version>1.0.0-SNAPSHOT</version>

  <properties>
    <! ... -->
    <quarkus.platform.artifact-id>quarkus-bom</quarkus.platform.artifact-id>
    <quarkus.platform.group-id>io.quarkus</quarkus.platform.group-id>
    <quarkus.platform.version>3.24.0</quarkus.platform.version>
  </properties>

  <dependencyManagement>
    <dependencies>
      <dependency>
        <groupId>${quarkus.platform.group-id}</groupId>
        <artifactId>${quarkus.platform.artifact-id}</artifactId>
        <version>${quarkus.platform.version}</version>
        <type>pom</type>
        <scope>import</scope>
      </dependency>
    </dependencies>
  </dependencyManagement>

  <dependencies>
      <dependency>
          <groupId>io.quarkus</groupId>
          <artifactId>quarkus-vertx-http</artifactId>
      </dependency>
      <dependency>
          <groupId>io.quarkus</groupId>
          <artifactId>quarkus-qute</artifactId>
      </dependency>
      <dependency>
          <groupId>io.vertx</groupId>
          <artifactId>vertx-web-client</artifactId>
      </dependency>
      <dependency>
          <groupId>io.vertx</groupId>
          <artifactId>vertx-auth-oauth2</artifactId>
      </dependency>
  </dependencies>
  <! ... -->
</project>

Compared to the pom.xml from the Vert.x OIDC on Vert.x section, this pom.xml retains only two original Vert.x dependencies in the io.vertx group, vertx-web-client to support GitHub API calls, and vertx-auth-oauth2 to continue securing the protected endpoint with the Vert.x GitHub OAuth2 provider.

We also introduce two Quarkus dependencies in the io.quarkus group, quarkus-vertx-http, and quarkus-qute which provides Qute Templating Engine and replaces the Handlebars engine used in the Vert.x OIDC on Vert.x section.

The MainVerticle Java class has been converted to a CDI ApplicationScoped GitHubProfileService Java bean class which registeres the Vert.x route and handlers on the start-up:

package howto.oauth_oidc;

import org.eclipse.microprofile.config.inject.ConfigProperty;

import io.quarkus.qute.Template;
import io.vertx.core.Vertx;
import io.vertx.ext.auth.authorization.PermissionBasedAuthorization;
import io.vertx.ext.auth.oauth2.OAuth2Auth;
import io.vertx.ext.auth.oauth2.authorization.ScopeAuthorization;
import io.vertx.ext.auth.oauth2.providers.GithubAuth;
import io.vertx.ext.web.Router;
import io.vertx.ext.web.handler.AuthorizationHandler;
import io.vertx.ext.web.handler.OAuth2AuthHandler;
import io.vertx.ext.web.handler.SessionHandler;
import io.vertx.ext.web.sstore.LocalSessionStore;
import jakarta.enterprise.context.ApplicationScoped;
import jakarta.enterprise.event.Observes;
import jakarta.inject.Inject;

@ApplicationScoped
public class GitHubProfileService {

    OAuth2Auth authProvider;
    @Inject
    Template userEmail;

    public GithubProfileService(Vertx vertx,
            @ConfigProperty(name = "github_client_id") String githubClientId,
            @ConfigProperty(name = "github_client_secret") String githubClientSecret) {
        authProvider = GithubAuth.create(vertx, githubClientId, githubClientSecret); (1)
    }

    void start(@Observes Router router, Vertx vertx) { (2)

        router.route().handler(SessionHandler.create(LocalSessionStore.create(vertx)));

        router.get("/protected").handler(
                OAuth2AuthHandler.create(vertx, authProvider, "http://localhost:8080/login")
                        .setupCallback(router.route("/login")).withScope("user:email"))
                .handler(AuthorizationHandler.create(PermissionBasedAuthorization.create("user:email"))
                        .addAuthorizationProvider(ScopeAuthorization.create(" ")))
                .handler(new ProtectedProfileHandler(authProvider, userEmail)); (3)
    }
}
1 Initialize OAuth2 GitHub provider with an injected Vert.x instance, and GitHub client id and secret properties.
2 Setup a router at the start up, nearly exactly as it was done in the MainVerticle class in the Vert.x OIDC on Vert.x section, with only a small difference, see the next point.
3 Pass the injected Qute userEmail template to the ProtectedProfileHandler.

The ProtectedProfileHandler Java class remains similar to how it was implemented in the Vert.x OIDC on Vert.x section, but now it works with the Qute template and looks like this:

package howto.oauth_oidc;

import io.quarkus.qute.Template;
import io.vertx.core.Handler;
import io.vertx.ext.auth.authentication.TokenCredentials;
import io.vertx.ext.auth.oauth2.OAuth2Auth;
import io.vertx.ext.web.RoutingContext;
import io.vertx.ext.web.client.WebClient;
import io.vertx.ext.web.codec.BodyCodec;

class ProtectedProfileHandler implements Handler<RoutingContext> {

    private final OAuth2Auth authProvider;
    private final Template userEmail;

    ProtectedProfileHandler(OAuth2Auth authProvider, Template userEmail) {
        this.authProvider = authProvider;
        this.userEmail = userEmail;
    }

    @Override
    public void handle(RoutingContext ctx) {
        authProvider.userInfo(ctx.user()).onSuccess(userInfo -> {
            // fetch the user emails from the github API
            WebClient.create(ctx.vertx()).getAbs("https://api.github.com/user/emails") (1)
                    .authentication(new TokenCredentials(ctx.user().<String>get("access_token"))) (2)
                    .as(BodyCodec.jsonArray()).send().onSuccess(res -> {
                        userInfo.put("private_emails", res.body());

                        userEmail.data("userInfo", userInfo).renderAsync() (3)
                           .whenComplete((result, failure) -> {
		               if (failure == null) {
		                   ctx.response().putHeader("Content-Type", "text/html").end(result);
		               } else {
		                   ctx.session().destroy();
		                   ctx.fail(failure);
		               }
                           });
                    });
        });
    }
}
1 Fetch the user emails with Vert.x WebClient
2 Use the GitHub access token to access GitHub API
3 Update UserInfo with a JSON array containing private emails, pass it to the userEmail template and render it asynchronously.

The index.hbs has been renamed to the index.html Qute template and moved to the src/main/resources/META-INF/resources/ directory, its content remains the same.

The protected.hbs has been converted to the userEmail.html Qute template and moved to the src/main/templates directory. It has been updated to follow Qute rules:

<html lang="en">
<body>
<p>Well, well, well, {userInfo.login}!</p>
<p>
  {#if userInfo.email} It looks like your public email
    address is {userInfo.email}.
  {#else} It looks like you don't have a public email.
    That's cool.
  {/if}
</p>
<p>
  {#if userInfo.containsKey('private_emails')}
    With your permission, we were also able to dig up your
    private email addresses:
    {#for email in userInfo.private_emails}
      {email.email}
      {#if email_hasNext},{/if}
    {/for}
  {#else}
    Also, you're a bit secretive about your private email
    addresses.
  {/if}
</p>
</body>
</html>

This simple template is quite similar to the Handlebars template you created in the the Vert.x OIDC on Vert.x section. Please see the Qute Reference Guide for more details.

Now, you can compile and run the application but let’s start it the dev mode with mvn quarkus:dev.

Go to http://localhost:8080 and follow the Securing a Web Application with OAuth2/OpenID Connect tutorial to login to GitHub and get your GitHub account email(s) displayed.

The same sequence of redirects that is described in the end of the Vert.x OIDC on Vert.x section also happened in this application, after you accessed http://localhost:8080/protected.

At this point, if you prefer, you can continue learning working with Quarkus, while keeping your existing Veert.x OIDC code.

You may also want to have a look at how to apply authorization rules to the HTTP request paths, without having to use annotations.

If you would like to learn how to migrate Vert.x OIDC to Quarkus OIDC, please follow to the next Migrate to Quarkus OIDC section.

Migrate to Quarkus OIDC

We started with working through the original Securing a Web Application with OAuth2/OpenID Connect tutorial in the Vert.x OIDC on Vert.x section. And in the Vert.x OIDC on Quarkus section, we converted it to run on Quarkus, while retaining Vert.x OIDC.

In this section, you are going to learn how the Vert.x OIDC code can be converted to Quarkus OIDC.

Let’s start with updating the pom.xml, it should look like this:

<project>
  <groupId>howto</groupId>
  <artifactId>quarkus-oauth-oidc</artifactId>
  <version>1.0.0-SNAPSHOT</version>

  <properties>
    <! ... -->
    <quarkus.platform.artifact-id>quarkus-bom</quarkus.platform.artifact-id>
    <quarkus.platform.group-id>io.quarkus</quarkus.platform.group-id>
    <quarkus.platform.version>3.24.0</quarkus.platform.version>
  </properties>

  <dependencyManagement>
    <dependencies>
      <dependency>
        <groupId>${quarkus.platform.group-id}</groupId>
        <artifactId>${quarkus.platform.artifact-id}</artifactId>
        <version>${quarkus.platform.version}</version>
        <type>pom</type>
        <scope>import</scope>
      </dependency>
    </dependencies>
  </dependencyManagement>

  <dependencies>
      <dependency>
          <groupId>io.quarkus</groupId>
          <artifactId>quarkus-vertx-http</artifactId>
      </dependency>
      <dependency>
          <groupId>io.quarkus</groupId>
          <artifactId>quarkus-qute</artifactId>
      </dependency>
      <dependency>
          <groupId>io.quarkus</groupId>
          <artifactId>quarkus-oidc</artifactId>
      </dependency>
      <dependency>
          <groupId>io.quarkus</groupId>
          <artifactId>quarkus-rest</artifactId>
      </dependency>
      <dependency>
          <groupId>io.quarkus</groupId>
          <artifactId>quarkus-rest-qute</artifactId>
      </dependency>
      <dependency>
          <groupId>io.quarkus</groupId>
          <artifactId>quarkus-rest-client-jackson</artifactId>
      </dependency>
      <dependency>
          <groupId>io.quarkus</groupId>
          <artifactId>quarkus-rest-client-oidc-token-propagation</artifactId>
      </dependency>
  </dependencies>
  <! ... -->
</project>

Compared to the pom.xml from the Vert.x OIDC on Quarkus section above, this pom.xml no longer has dependencies in the io.vertx group but retains two Quarkus dependencies in the io.quarkus group, quarkus-vertx-http and quarkus-qute, and adds several more Quarkus dependencies.

The quarkus-oidc extension is used to protect the secured endpoint and manage the GitHub OAuth2 authentication. The quarkus-rest extension is used to support JAX-RS REST endpoints, while the quarkus-rest-qute extension makes it easier to render Qute templates with JAX-RS.

The quarkus-rest-client-oidc-token-propagation extension supports an easy access token propagation with the REST client, and the quarkus-rest-client-jackson helps to convert REST client responses in JSON format to Java beans and records with Jackson.

The GitHubProfileService has now become a JAX-RS REST class:

package howto.oauth_oidc;

import java.util.Set;
import java.util.function.Function;

import org.eclipse.microprofile.rest.client.inject.RestClient;

import howto.oauth_oidc.GitHubApiClient.Email;
import io.quarkus.oidc.OidcSession;
import io.quarkus.oidc.UserInfo;
import io.quarkus.qute.Template;
import io.quarkus.qute.TemplateInstance;
import io.quarkus.security.Authenticated;
import io.smallrye.mutiny.Uni;
import jakarta.inject.Inject;
import jakarta.ws.rs.GET;
import jakarta.ws.rs.NotAuthorizedException;
import jakarta.ws.rs.Path;
import jakarta.ws.rs.Produces;
import jakarta.ws.rs.core.Response;

@Path("/protected")
@Authenticated (1)
public class GitHubProfileService {

    @Inject
    Template userEmail;

    @Inject
    UserInfo userInfo; (2)

    @Inject
    @RestClient
    GitHubApiClient gitHubApiClient; (3)

    @Inject
    OidcSession oidcSession; (4)

    @GET
    @Produces("text/html")
    public Uni<TemplateInstance> getEmail() { (5)
        return gitHubApiClient.userEmails() (6)
            .onItemOrFailure().transformToUni((emails, throwable) -> {
                if (throwable == null) {
                    return Uni.createFrom().item(toUserEmails(emails)); (7)
                }
                return oidcSession.logout(). (8)
                    onItem().transform(new Function<Void, TemplateInstance>() {
                        @Override
                        public TemplateInstance apply(Void t) {
                            throw new NotAuthorizedException(Response.status(401).build());
                        }
                    });
        });
    }

    private TemplateInstance toUserEmails(Set<Email> emails) { (7)
        return userEmail.data("name", userInfo.getName()).data("email", userInfo.getEmail())
                .data("private_emails", emails);
    }

}
1 Require an authenticated access to the /protected endpoint.
2 Inject GitHub specific UserInfo representation.
3 Inject GitHub API REST client that is used to request user emails.
4 Inject the current OIDC session.
5 JAX-RS method that returns a userEmail template instance to be rendered. You do not have to use Uni but since you are migrating from Vert.x, you are surely very comfortable with the reactive code supported by Uni in Quarkus.
6 Use the injected REST client to access GitHub API and request the private user emails
7 If the request to the GitHub API succeeded, initialize a template instance with the user email and the returned set of the private email addresses
8 If the request to the GitHub API failed, clear a session cookie by performing a local session logout and return HTTP 401 status.

To acquire the private user emails, GitHubApiClient REST Client is used:

package howto.oauth_oidc;

import java.util.Set;

import org.eclipse.microprofile.rest.client.inject.RegisterRestClient;

import io.quarkus.oidc.token.propagation.common.AccessToken;
import io.smallrye.mutiny.Uni;
import jakarta.ws.rs.GET;
import jakarta.ws.rs.Path;
import jakarta.ws.rs.Produces;
import jakarta.ws.rs.core.MediaType;

@RegisterRestClient(configKey = "github-api-client") (1)
@Path("/")
@AccessToken (2)
public interface GitHubApiClient {

    @GET
    @Produces(MediaType.APPLICATION_JSON)
    @Path("user/emails")
    Uni<Set<Email>> userEmails(); (3)

    record Email(String email) {

    }
}
1 Register a REST client, use the github-api-client configuration key
2 Request the access token propagation.
3 Return a set of private emails. As in the previous example, you do not have to use Uni but having Uni aligns better with the JAX-RS method which calls this method and returns a Uni response in the GitHubProfileService JAX-RS resource above.

The configuration in the application.properties looks like this:

quarkus.oidc.provider=github (1)
quarkus.oidc.client-id=${github_client_id}
quarkus.oidc.credentials.secret=${github_client_secret} (2)

# By default, Quarkus GitHub provider submits the client id and secret in the HTTP Authorization header. (2)
# However, GitHub may require that both client id and secret are submitted as form parameters instead.
# In this case, replace 'quarkus.oidc.credentials.secret=${github_client_secret}'
# with the following two properties:
#quarkus.oidc.credentials.client-secret.method=post
#quarkus.oidc.credentials.client-secret.value=${github_client_secret}

quarkus.oidc.authentication.redirect-path=/login (3)
quarkus.oidc.authentication.restore-path-after-redirect=true (4)

quarkus.http.auth.permission.login.paths=/login (5)
quarkus.http.auth.permission.login.policy=authenticated

quarkus.rest-client.github-api-client.url=https://api.github.com (6)

quarkus.rest-client.logging.scope=request-response (7)
quarkus.rest-client.logging.body-limit=200
quarkus.log.category."org.jboss.resteasy.reactive.client.logging".level=DEBUG
1 Enable the Quarkus GitHub provider
2 By default, when the Quarkus GitHub provider acquires the access token, it sends the client id and secret as the encoded HTTP Authorization Basic scheme value. In some regions, GitHub may not support such an option, see the comment in the application.properties above how to enable a client_secret_post method instead, for the client id and secret be sent as form parameters.
3 Declare a callback /login path.
4 Restore the original /protected request path once the authorization code flow has been complete. You may recall that in the examples with Vert.x OIDC in the Vert.x OIDC on Vert.x and Vert.x OIDC on Vert.x sections, the original request path is restored by default, without users having to do anything at all. However, by default, Quarkus OIDC gives access to the callback resource, but only after it has completed the authorization code flow, see the next Migrate to Quarkus OIDC with the custom callback method section for more details.
5 In Quarkus security, the resource is secured if it is either annotated with one of the security annotations such as @Authenticated or its endpoint path is secured in the configured HTTP security policy. The /login callback resource is virtual - neither JAX-RS method nor an additional callback handler is allocated to process it, therefore it must be secured with the HTTP security policy configuration, for the Quarkus OIDC authentication mechanism to secure it.
6 Configure the github-api-client REST Client base URL.
7 Log REST Client request and response data.

The index.html Qute template in the src/main/resources/META-INF/resources/ directory and the userEmail.html Qute template in the src/main/templates directory remain unchanged.

Now, start the application in the dev mode with mvn quarkus:dev.

Go to http://localhost:8080, login to GitHub and get your GitHub account email(s) displayed.

When you accessed the http://localhost:8080/protected page the first time, the following redirects happened:

  • You were redirected by Quarkus OIDC to GitHub to login.

  • You were redirected by GitHub to the http://localhost:8080/login virtual callback handler, Quarkus OIDC completed the authorization code flow and acquired the GitHub access token.

  • You were redirected by Quarkus OIDC to the original request URL, http://localhost:8080/protected. The OIDC redirect query parameters such as code and state are also dropped during this final redirect.

Migrate to Quarkus OIDC with the custom callback method

When we worked with the first Vertx OIDC to Quarkus OIDC migration example, we had to configure Quarkus OIDC to restore the original request URL, after the authorization code flow is complete.

In this section, we are going to look at the alternative, default option, where a custom callback handler is called, but after Quarkus OIDC has completed the authorization code flow.

Typically, in production, users that must login are guided to the central login URL first, as opposed to them accessing random secured paths and expecting to be returned to the very same original request paths, likely missing the context available from the central login endpoint. Instead, once the user lands at the secured central login page, this page redirects users further according to the application flow.

By nominating the central login endpoint as a callback URL, you have the authenticated users landing on this login endpoint once the authorization code flow is complete without requiring Quarkus OIDC to keep the original request URL as the authorization code flow state to be able to restore it, and also making it possible to secure the callback endpoints with the security annotations.

Let’s have a look at how it can be done.

The dependencies remain the same as in Migrate to Quarkus OIDC section, but we add one more JAX-RS resource that manages a login callback:

package howto.oauth_oidc;

import io.quarkus.security.Authenticated;
import jakarta.ws.rs.GET;
import jakarta.ws.rs.Path;
import jakarta.ws.rs.Produces;
import jakarta.ws.rs.core.Context;
import jakarta.ws.rs.core.Response;
import jakarta.ws.rs.core.UriInfo;

@Path("/login")
@Authenticated (1)
public class LoginService {

    @GET
    public Response login(@Context UriInfo uriInfo) {
        return Response.seeOther(uriInfo.getBaseUriBuilder().path("protected").build()).build(); (2)
    }
}
1 LoginService is a secured callback handler which gets control once Quarkus OIDC completes the authorization code flow.
2 Do whatever is required by the application once the authenticated users land on this page. In this case, they are redirected to the secured /protected resource. This /protected endpoint may be an internal endpoint. If the secured /protected endpoint is also publicly accessible and unauthenticated users try to access it, then they will still land on this LoginService page first after authenticating with GitHub, and be redirected to the /protected page next.

GitHubProfileService and GitHubApiClient classes remain the same as in the Migrate to Quarkus OIDC section.

The configuration looks much simpler now:

quarkus.oidc.provider=github (1)
quarkus.oidc.client-id=${github_client_id}
quarkus.oidc.credentials.secret=${github_client_secret}

quarkus.oidc.authentication.redirect-path=/login (2)

quarkus.rest-client.github-api-client.url=https://api.github.com (3)

quarkus.rest-client.logging.scope=request-response (4)
quarkus.rest-client.logging.body-limit=200
quarkus.log.category."org.jboss.resteasy.reactive.client.logging".level=DEBUG
1 Enable the Quarkus GitHub provider
2 Declare a callback /login path.
3 Configure the github-api-client REST Client base URL.
4 Log REST Client request and response data.

The index.html Qute template in the src/main/resources/META-INF/resources/ directory and the userEmail.html Qute template in the src/main/templates directory remain unchanged.

Go to http://localhost:8080, login to GitHub and get your GitHub account email(s) displayed.

When you accessed the http://localhost:8080/protected page the first time, the following redirects happened:

  • You were redirected by Quarkus OIDC to GitHub to login

  • You were redirected by GitHub to the http://localhost:8080/login callback handler, but Quarkus OIDC completes the authorization code flow and acquires the GitHub access token first.

  • Before the /login handler is given control, Quarkus OIDC removes the OIDC redirect code and state properties and redirects the user to the same /login endpoint - this is done to minimize a risk of these parameters remaining visible in the user browser if the applications returns an application error after completing the authorization code flow, with the code and state query parameters still present in the current browser view. If preferred, this final redirect can be disabled with quarkus.oidc.authentication.remove-redirect-parameters=false.

Enforce GitHub access token scope in Quarkus OIDC

Both the Vert.x OIDC on Vert.x and Vert.x OIDC on Quarkus sections demonstrate how you can retrict access to the Vert.x OIDC application by enforcing that the GitHub access token has a user:email scope.

Also, in the Vert.x OIDC on Vert.x section, we also commented that GitHub access tokens are meant to be used to access GitHub API, and not the application that acquired them, and therefore enforcing a GitHub access token user:email scope was not necessary.

If you do wish to continue enforcing a GitHub access token user:email scope after migrating to Quarkus OIDC, you can do as follows.

First, replace the @Authenticated annotation with @PermissionsAllowed("user:email"), with the latter implying the former and requiring a user authentication too:

@Path("/protected")
@PermissionsAllowed("user:email") (1)
public class GitHubProfileService {
//...
}

And add the following configuration property: quarkus.oidc.roles.source=accesstoken.

The reason you have to add this property is because with the authorization code flow, Quarkus OIDC treats the ID token as the primary token that controls access to the application into where the user has logged in, it uses the access token to access downstream services as required by the application on behalf of the authenticated user who authorized the application to do it.

When Quarkus OIDC works with the pure OAuth2 providers such as GitHub, it generates an internal ID token to represent the user authentication. The GitHub access token is still meant to access GitHub API.

This is why you have to set quarkus.oidc.roles.source=accesstoken, when you prefer to use an access token acquired by the application during the authorizatuion code flow to access this very same application.

Session management in Vertx OIDC and Quarkus OIDC

Vert.x OIDC is stateful and some users may assume that, therefore, Vert.x OIDC does not use cookies. It is not the case: it uses an opaque session cookie to track both the authorization code flow progress and the authenticated user session.

When you run an application created in either the Vert.x OIDC on Vert.x or Vert.x OIDC on Quarkus sections, you can use your browser’s developer tools to observe that an opaque vertx-web-session session cookie is used to track the user session:

Vertx OIDC session cookie

The state associated with the current user session is stored on the server.

Now, when you run an application created in either the Migrate to Quarkus OIDC or Migrate to Quarkus OIDC with the custom callback method sections, you can observe that Quarkus OIDC also uses a q_session session cookie but it is significantly larger in size:

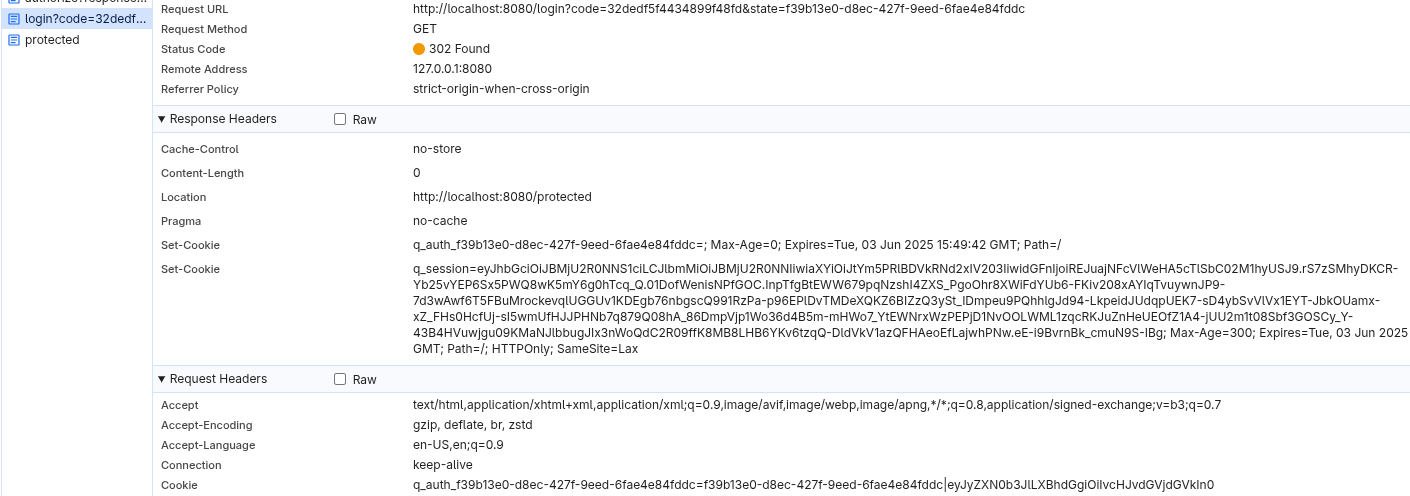

Quarkus OIDC encrypted session cookie

It is due to the fact that Quarkus OIDC is stateless by default. It encrypts the user session details in the session cookie and no user session related content is stored on the server. This approach offers significantly higher WEB-scale level capabilities.

Is it less secure than the stateful approach ? It is hard to give a precise answer. The stateful approach does not protect the session cookie, if the attacker gets hold of it, the secure access is compromised. Thefore, with either approach, using HTTPS and applying additional CORS and CSRF controls must be considered.

For the stateless approach, Quarkus allows users to configure a session cookie encryption key, fallbacks to the client secret and finally to a generated secure random key to apply a JSON Web Encryption (JWE) to encrypt a generated content encryption key with the symmetric A256GCMKW algorithm and the A256GCM algorithm to encrypt the actual session cookie content.

However, if you do prefer to continue following a stateful approach, you can easily achieve it with Quarkus OIDC.

The session state that Quarkus OIDC keeps includes the ID, access and refresh tokens. Additionally, if the authorization code grant response returns the access token expiry and scope properties, then their values are also stored.

To start with, you can register a custom quarkus.oidc.TokenStateManager and implement a required session state storage mechanism. For example, Quarkus OIDC does not ship an in-memory TokenStateManager because it does not really work after restarts or across multiple pods, but you can implement the one in order to start experimenting with the custom TokenStateManager.

Additionally, Quarkus OIDC ships both a database-aware TokenStateManager that can integrate with most known databases and a Redis TokenStateManager. See the section for mor details.

Let’s see how it works with the Redis TokenStateManager.

Update the pom.xml from either the Migrate to Quarkus OIDC or Migrate to Quarkus OIDC with the custom callback method sections by adding this single dependency:

<project>
  <! ... -->
  <dependencies>
      <! ... ->
      <dependency>
          <groupId>io.quarkus</groupId>
          <artifactId>quarkus-oidc-redis-token-state-manager</artifactId>
      </dependency>
  </dependencies>
  <! ... -->
</project>

It is all that you need to do to start using the Redis TokenStateManager.

Clear the cookies in the browser, access the protected endpoint again and now you can observe an opaque q_session session cookie only:

Quarkus OIDC opaque session cookie

You may also observe that Vert.x OIDC uses a session cookie to track the authorization code flow progress as well as the authenticated user’s session.

On the other hand, Quarkus OIDC uses a dedicated q_auth_<uuid> state cookie while the authorization code flow is in progress and only creates a session cookie once the code flow is complete. The state cookie names are also unique allowing for a multi-tab authentication.

Help with the migration

If you are considering to migrate from Vert.x OIDC to Quarkus OIDC and have questions that may not have been answered in this guide, please reach out to the Quarkus team.

Please also see the References for more information.

References

Conteúdo Relacionado

Nas mesmas extensões

Nos mesmos tópicos

Quarkus is open. All dependencies of this project are available under the Apache Software License 2.0 or compatible license. CC by 3.0

This website was built with Jekyll, is hosted on GitHub Pages and is completely open source. If you want to make it better, fork the website and show us what you’ve got.

Navigation
Follow Us
Get Help
Languages
Quarkus is made of community projects
Copyright © Quarkus. All rights reserved. For details on our trademarks, please visit our Trademark Policy and Trademark List. Trademarks of third parties are owned by their respective holders and their mention here does not suggest any endorsement or association.
