Use Quarkus MCP client to access secure MCP HTTP servers
Introduction
MCP servers that use the Streamable HTTP or HTTP/SSE transports may require MCP client authentication.
In the Getting ready for secure MCP with Quarkus MCP Server blog post, we explained how to enforce MCP client authentication with the Quarkus MCP Server and demonstrated how MCP Server DevUI can use Keycloak access tokens to access the MCP server in dev mode and how MCP Inspector and curl can use GitHub access tokens to access the MCP server in prod mode.
In this blog post, we will explain how Quarkus MCP Client can use access tokens to access secure MCP servers.
We will show how to log in to Quarkus LangChain4j AI Poem Service
application with GitHub OAuth2 and have Google AI Gemini use tools with the help from Quarkus MCP Client that can propagate the GitHub access token to the secure Quarkus MCP Server.

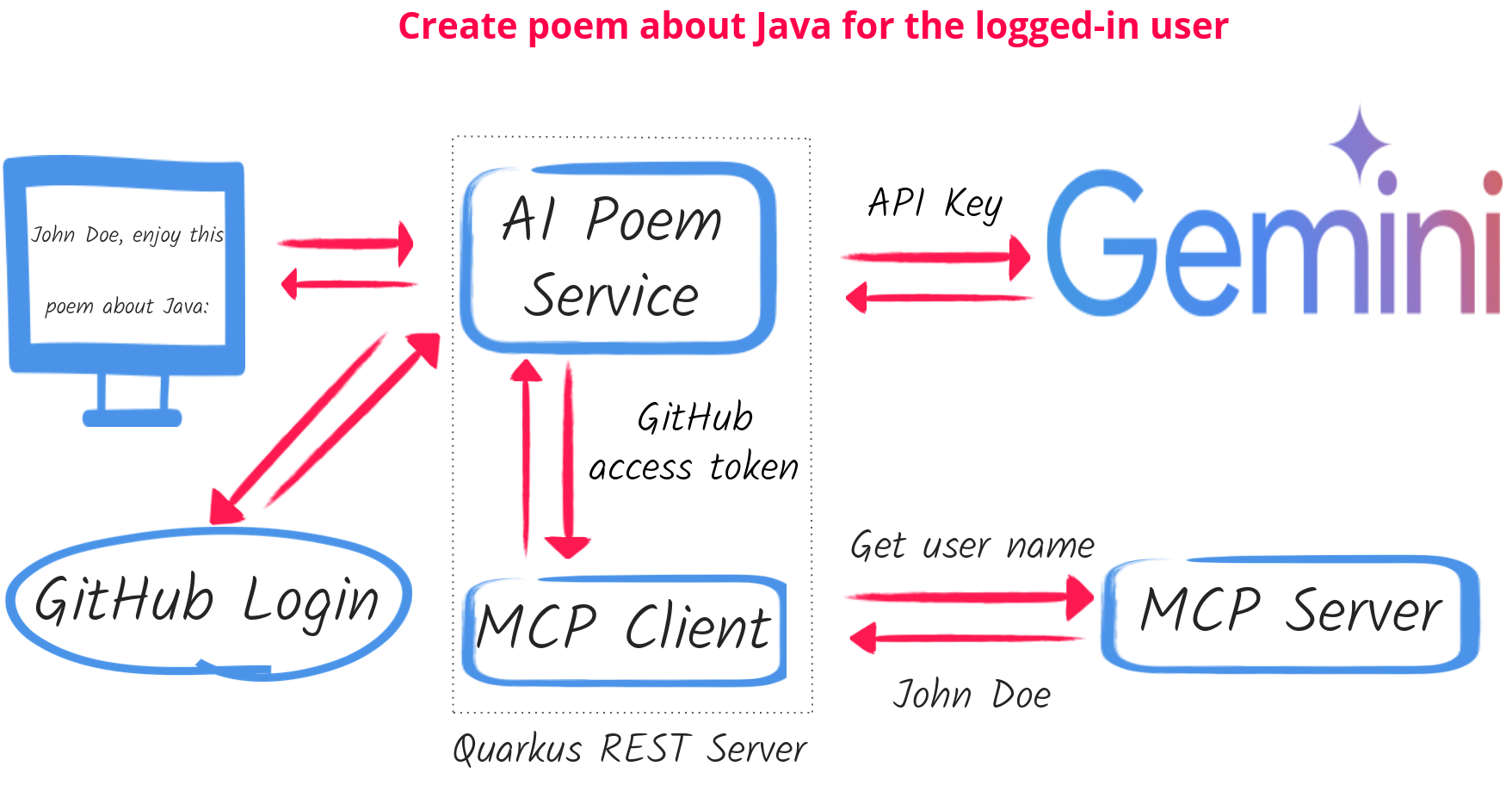

Demo architecture

As you can see in the diagram above, the user logs in into the Quarkus REST Poem Service
application endpoint. To support the user request to create a poem, the Poem Service
uses AI Gemini
and requests MCP Client
to complete a tool call to help AI Gemini
to find out the name of the logged-in user.
An essential point is that both Poem Service
and MCP Client
are part of the same single Quarkus REST application that only users who logged in with GitHub can access. The users do not login to MCP Client
, they login to the Poem Service
application, using the MCP client
is an implementation detail of how this application completes the user request.
Therefore, this demo does not demonstrate an implementation of the MCP Authorization flow which is primarily of interest to public MCP clients implemented as Single-page applications (SPA), such as as Anthropic Claude, that will be able to initiate a user login into an imported MCP server.
This demo shows a typical OAuth2
authorization code flow where a user logs-in to a REST endpoint and authorizes it to access another service on the user’s behalf. It also strengthens the message about the AI security being an integral part of your application security.

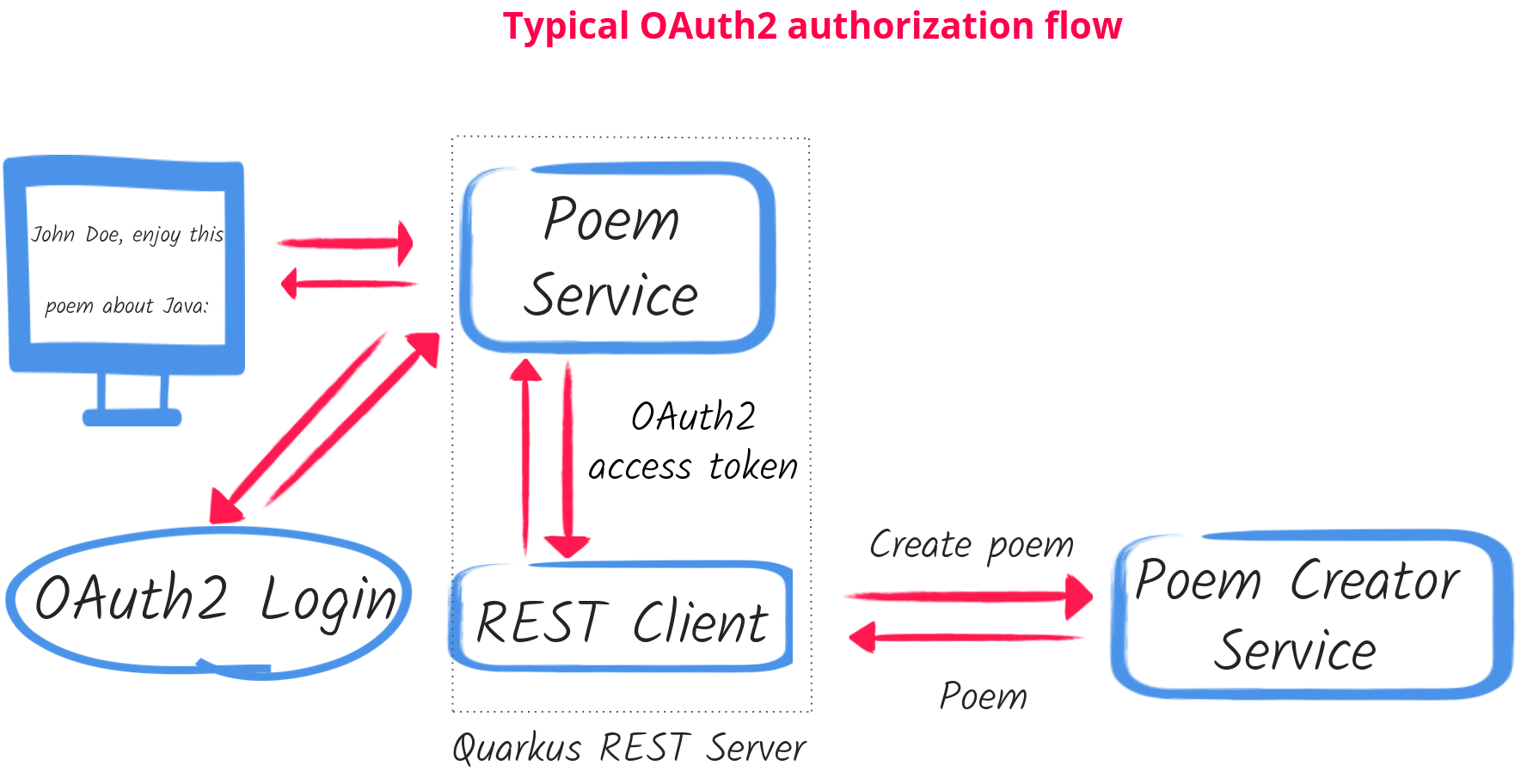

For example, let’s temporarily update the diagram by removing the AI Gemini
, replacing MCP Client
with REST Client
, MCP Server
with Poem Creator service
and GitHub
with OAuth2
:

You will very likely find similarities between this diagram and what you do in your projects. It is the OAuth2 authorization code flow in action: the user logs in to the application and authorizes it to access another service offering a poem creation on the user’s behalf.
The demo shows that Quarkus MCP Client can work effectively in such architectures by being able to use access tokens acquired during the user login, without you having to write any custom code.
We are now ready to start working on the Secure MCP Client Server
demo.
You can find the complete project source in the Quarkus LangChain4j Secure MCP Client Server sample.
Step 1 - Create and start MCP server
First, let’s create a secure Quarkus MCP SSE server.
If you already created the MCP server as described in the the Getting ready for secure MCP with Quarkus MCP Server blog post, then you will find instructions below familiar and should be able to reuse the project you created earlier with minor updates. |
MCP server requires authentication to establish Server-Sent Events (SSE) connection and also when invoking the tools. Additionally, the MCP server endpoint that provides access to tools requires that the security identity has a read:name
permission.
MCP server maven dependencies
Add the following dependencies:
<dependency>
<groupId>io.quarkiverse.mcp</groupId>
<artifactId>quarkus-mcp-server-sse</artifactId> (1)
<version>1.1.1</version>
</dependency>
<dependency>
<groupId>io.quarkus</groupId>
<artifactId>quarkus-oidc</artifactId> (2)
</dependency>
<dependency>
<groupId>io.quarkus</groupId>
<artifactId>quarkus-hibernate-orm-panache</artifactId> (3)
</dependency>
<dependency>
<groupId>io.quarkus</groupId>
<artifactId>quarkus-jdbc-postgresql</artifactId> (3)
</dependency>
1 | quarkus-mcp-server-sse is required to support MCP SSE transport. |
2 | quarkus-oidc is required to secure access to MCP SSE endpoints. Its version is defined in the Quarkus BOM. |
3 | quarkus-hibernate-orm-panache and quarkus-jdbc-postgresql are required to support the Security Identity Augmentation. Their versions are defined in the Quarkus BOM. |
MCP server tool
Let’s create a tool that can return the name of the currently logged-in user. It can be invoked only if the current MCP request is authenticated but also if the security identity has a read:name
permission:
package io.quarkiverse.langchain4j.sample;
import io.quarkiverse.mcp.server.TextContent;
import io.quarkiverse.mcp.server.Tool;
import io.quarkus.security.PermissionsAllowed;
import io.quarkus.security.identity.SecurityIdentity;
import jakarta.inject.Inject;
public class UserNameProvider {
@Inject
SecurityIdentity securityIdentity;
@Tool(name = "user-name-provider", description = "Provides a name of the currently logged-in user") (1)
@PermissionsAllowed("read:name") (2)
TextContent provideUserName() {
return new TextContent(securityIdentity.getPrincipal().getName()); (3)
}
}
1 | Provide a tool that can return the name of the current user. |
2 | Require authenticated tool access with an additional authorization read:name permission constraint - yes, the only difference with an unauthenticated MCP server tool is @PermissionsAllowed("read:name") , that’s it!
See also how the main MCP SSE endpoint is secured in the MCP Server Configuration section below. |
3 | Use the injected SecurityIdentity to return the current user’s name. Alternatively, it can be acquired from the injected quarkus.oidc.UserInfo . |
Security Identity Augmentation
To meet the @PermissionsAllowed("read:name")
authorization constraint, the security identity created after verifying the GitHub access token must be augmented to have a read:name
permission.
The demo expects that a database has a record with a GitHub account name and the assigned permission. The security identity augmentor uses the identity name to retrieve this record and enhance the identity with the discovered permission.
Let’s see how this rather complex task can be easily achieved in Quarkus.
First, we create a Panache entity that keeps the account name and permission values:
package io.quarkiverse.langchain4j.sample;
import io.quarkus.hibernate.orm.panache.PanacheEntity;
import jakarta.persistence.Column;
import jakarta.persistence.Entity;
@Entity
public class Identity extends PanacheEntity {
@Column(unique = true)
public String name;
public String permission;
public static Identity findByName(String name) { (1)
return find("name", name).firstResult();
}
}
1 | Utility method to find an identity record with a matching GitHub account name. |
Second, we create an import.sql
script to have a demo record added to the database:
INSERT INTO identity(id, name, permission) VALUES (1, '${user.name}', 'read:name'); (1)
1 | Insert a demo record. You will provide your GitHub account name when starting MCP server. |
Finally, we create a security identity augmentor:
package io.quarkiverse.langchain4j.sample;
import io.quarkus.security.identity.AuthenticationRequestContext;
import io.quarkus.security.identity.SecurityIdentity;
import io.quarkus.security.identity.SecurityIdentityAugmentor;
import io.quarkus.security.runtime.QuarkusSecurityIdentity;
import io.smallrye.mutiny.Uni;
import jakarta.enterprise.context.ApplicationScoped;
import jakarta.enterprise.context.control.ActivateRequestContext;
import jakarta.inject.Inject;
@ApplicationScoped
public class SecurityIdentityPermissionAugmentor implements SecurityIdentityAugmentor { (1)
@Inject
HibernateBlockingAugmentor hibernateBlockingAugmentor;
@Override
public Uni<SecurityIdentity> augment(SecurityIdentity identity, AuthenticationRequestContext context) {
return context.runBlocking(() -> hibernateBlockingAugmentor.augment(identity)); (2)
}
@ApplicationScoped
static class HibernateBlockingAugmentor {
@ActivateRequestContext
public SecurityIdentity augment(SecurityIdentity securityIdentity) {
Identity identity = Identity.findByName(securityIdentity.getPrincipal().getName()); (3)
QuarkusSecurityIdentity.Builder builder = QuarkusSecurityIdentity.builder(securityIdentity); (4)
return builder.addPermissionAsString(identity.permission).build(); (5)
}
}
}
1 | Custom SecurityIdentityAugmentor can augment the already verified security identity. |
2 | Run the augmentation in a blocking mode because it requires access to the database. |
3 | Find the recorded Identity matching the current user’s name. |
4 | Initialize a security identity builder from the current identity. |
5 | Add the permission allocated to this user and create an updated SecurityIdentity . |
This is all, the augmentation step is done with a few lines of code only.
MCP Server Configuration
Let’s configure our secure MCP server:
quarkus.mcp.server.traffic-logging.enabled=true (1)
quarkus.mcp.server.traffic-logging.text-limit=1000
quarkus.http.auth.permission.authenticated.paths=/mcp/sse (2)
quarkus.http.auth.permission.authenticated.policy=authenticated
quarkus.oidc.provider=github (3)
quarkus.oidc.application-type=service (4)
quarkus.hibernate-orm.database.generation=drop-and-create (5)
quarkus.hibernate-orm.log.sql=true
quarkus.hibernate-orm.sql-load-script=import.sql
quarkus.http.port=8081 (6)
1 | Enable MCP server traffic logging |
2 | Enforce an authenticated access to the main MCP SSE endpoint during the initial handshake. See also how the tool is secured with an annotation in the MCP server tool section above, though you can also secure access to the tool by listing both main and tools endpoints in the configuration, for example: quarkus.http.auth.permission.authenticated.paths=/mcp/sse,/mcp/messages/* . |
3 | Requires that only GitHub access tokens can be used to access MCP server. |
4 | By default, quarkus.oidc.provider=github supports an authorization code flow only. quarkus.oidc.application-type=service overrides it and requires the use of bearer tokens. |
5 | Database that keeps the identity records is supported by the PostgreSQL DevService. |
6 | Start MCP server on port 8081 - this is done for the Quarkus LangChain4j Poem Service application that uses an MCP client to be able to start on the default 8080 port. |
Start the MCP server in dev mode
mvn quarkus:dev -Duser.name="Your GitHub account name" (1)
1 | Use your GitHub account name, for example, mvn quarkus:dev -Duser.name="John Doe" . It is required to correctly import the user name and permission data to the database. |
The MCP server’s security-related configuration remains exactly the same in prod mode, therefore we are not going to talk about running the MCP server in prod to save some blog post space. Please check the Quarkus LangChain4j Secure MCP Client Server sample if you would like to run MCP server in prod mode - you will only need to make sure PostresSQL is available in prod mode too. |
Step 2 - Create and start Poem Service that uses AI Gemini and MCP client
The MCP server is now running and ready to accept tool calls. Let’s create an AI Poem Service
that will work with AI Gemini and use an MCP client to complete tool calls.
Poem Service Maven dependencies
Add the following dependencies:
<dependency>
<groupId>io.quarkiverse.langchain4j</groupId>
<artifactId>quarkus-langchain4j-ai-gemini</artifactId> (1)
</dependency>
<dependency>
<groupId>io.quarkiverse.langchain4j</groupId>
<artifactId>quarkus-langchain4j-mcp</artifactId> (2)
</dependency>
<dependency>
<groupId>io.quarkiverse.langchain4j</groupId>
<artifactId>quarkus-langchain4j-oidc-mcp-auth-provider</artifactId> (3)
</dependency>
<dependency>
<groupId>io.quarkus</groupId>
<artifactId>quarkus-oidc</artifactId> (4)
</dependency>
<dependency>
<groupId>io.quarkus</groupId>
<artifactId>quarkus-rest-qute</artifactId> (5)
</dependency>
1 | quarkus-langchain4j-ai-gemini brings support for AI Gemini. |
2 | quarkus-langchain4j-mcp provides core MCP Client support. |
3 | quarkus-langchain4j-oidc-mcp-auth-provider provides an implementation of McpClientAuthProvider that can supply access tokens acquired during the GitHub OAuth2 authorization code flow. |
4 | quarkus-oidc supports GitHub OAuth2 login to secure access to Poem Service . Its version is defined in the Quarkus BOM. |
5 | quarkus-rest-qute generates an HTML page to welcome the logged-in user. Its version is defined in the Quarkus BOM. |
Register GitHub OAuth2 application
Register a GitHub OAuth2 application that you will authorize when logging in to the Poem Service
application.
Follow the GitHub OAuth2 registration process, and make sure to register the http://localhost:8080/login
callback URL.
Use the generated GitHub client id and secret to either set GITHUB_CLIENT_ID
and GITHUB_CLIENT_SECRET
environment properties or update the quarkus.oidc.client-id=${github_client_id}
and quarkus.oidc.credentials.secret=${github_client_secret}
properties in application.properties by replacing ${github_client_id}
with the generated client id and ${github_client_secret}
with the generated client secret.
By default, Quarkus GitHub provider submits the client id and secret in the HTTP Authorization header. However, GitHub may require that both client id and secret are submitted as form parameters instead. If you get HTTP 401 error after logging in to GitHub and being redirected back to Quarkus MCP server, try to replace
|
AI Gemini API key
Poem Service
relies on AI Gemini to create a poem for the logged-in user.
Get AI Gemini API key and either set an AI_GEMINI_API_KEY
environment property or update the quarkus.langchain4j.ai.gemini.api-key=${ai_gemini_api_key}
property in application.properties
by replacing ${ai_gemini_api_key}
with the API key value.
GitHub Login Endpoint
The Poem Service
needs to have an endpoint that manages a GitHub OAuth2 login. Typically, such an endpoint welcomes the logged-in user and offers links for the user to navigate to the rest of the secured application.
Let’s implement this login endpoint:
package io.quarkiverse.langchain4j.sample;
import io.quarkus.qute.Template;
import io.quarkus.qute.TemplateInstance;
import io.quarkus.oidc.UserInfo;
import io.quarkus.security.Authenticated;
import jakarta.inject.Inject;
import jakarta.ws.rs.GET;
import jakarta.ws.rs.Path;
import jakarta.ws.rs.PathParam;
import jakarta.ws.rs.Produces;
/**
* Login resource which returns a poem welcome page to the authenticated user
*/
@Path("/login")
@Authenticated (1)
public class LoginResource {
@Inject
UserInfo userInfo; (2)
@Inject
Template poem;
@GET
@Produces("text/html")
public TemplateInstance poem() {
return poem.data("name", userInfo.getName()); (3)
}
}
1 | Require an authenticated access. It forces an authorization code flow for users who did not login with GitHub yet and a session verification for the already authenticated users. |
2 | GitHub access tokens are binary and Quarkus OIDC indirectly verifies them by using them to request GitHub specific UserInfo representation. |

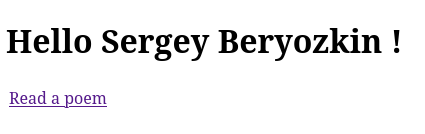

3 | After the user logs in to GitHub and is redirected to this endpoint, an HTML page with a user name and a link to the Poem Resource endpoint is generated with a simple Qute template and returned to the user. |
Create Poem Resource endpoint
The Poem Resource
endpoint accepts poem requests from authenticated users and delegates these requests to AI Poem Service
that uses AI Gemini
. AI Gemini
relies on the MCP client to get the name of the logged-in user.
package io.quarkiverse.langchain4j.sample;
import dev.langchain4j.agent.tool.Tool;
import dev.langchain4j.service.UserMessage;
import io.quarkiverse.langchain4j.RegisterAiService;
import io.quarkiverse.langchain4j.mcp.runtime.McpToolBox;
import io.quarkus.security.Authenticated;
import jakarta.inject.Inject;
import jakarta.inject.Singleton;
import jakarta.ws.rs.GET;
import jakarta.ws.rs.Path;
@Path("/poem")
@Authenticated (1)
public class PoemResource {
static final String USER_MESSAGE = """
Write a short 1 paragraph poem about a Java programming language.
Please start by greeting the currently logged in user by name and asking to enjoy reading the poem.""";
@RegisterAiService
public interface PoemService { (2)
@UserMessage(USER_MESSAGE)
@McpToolBox("user-name") (3)
String writePoem();
}
@Inject
PoemService poemService;
@GET
public String getPoem() {
return poemService.writePoem(); (4)
}
}
1 | Require authenticated poem requests. |
2 | AI Poem Service interface. |
3 | Refer to the MCP client user-name configuration, see the Poem Service Configuration section below. |
Poem Service Configuration
Let’s see how the Poem Service
configuration looks like:
quarkus.langchain4j.mcp.user-name.transport-type=http (1)
quarkus.langchain4j.mcp.user-name.url=http://localhost:8081/mcp/sse/ (2)
quarkus.oidc.provider=github (3)
quarkus.oidc.client-id=${github_client_id} (4)
quarkus.oidc.credentials.secret=${github_client_secret} (4)
quarkus.langchain4j.ai.gemini.api-key=${ai_gemini_api_key} (5)
quarkus.langchain4j.ai.gemini.log-requests=true (6)
quarkus.langchain4j.ai.gemini.log-responses=true
1 | Enable MCP client HTTP transport. In this demo we use SSE, with Streamable HTTP to be supported in the future. |
2 | Point to the Quarkus MCP server endpoint that you started in the Start the MCP server in dev mode step. |
3 | Require GitHub OAuth2 login. |
4 | GitHub client id and secret that were generated during the Register GitHub OAuth2 application step. |
5 | AI Gemini key that you acquired during the AI Gemini API key step. |
6 | Enable AI Gemini request and response logging |
Please pay attention to the fact that the MCP client configuration has a |
Start Poem Service in dev mode
mvn quarkus:dev
All the Poem Service configuration remains exactly the same in prod mode, therefore we are not going to talk about running it in prod to save some blog post space. Please check the Quarkus LangChain4j Secure MCP Client Server sample if you would like to run it in prod mode. |
We are ready to test our AI Poem Service
application.
Step 3 - Test Poem Service

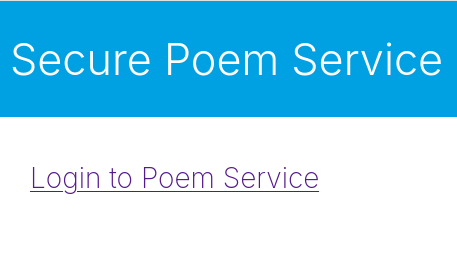

Access http://localhost:8080 and login to Poem Service
:

You should get a response with your name and a link to the Poem Service
endpoint:

At this point, Quarkus MCP Client was not involved in getting your name produced, it was done by the GitHub Login Endpoint.

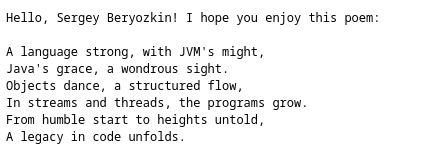

Click on the link to get a poem created and have AI Gemini producing a poem about Java for you:

This time, Quarkus MCP Client helped AI Gemini to get your name from the secure Quarkus MCP server.
Access token delegation considerations
In general, access tokens issued by social providers such as GitHub are not designed to be used in your distributed application architecture, with a service such as Poem Service
accessing GitHub API indirectly through another service such as Quarkus MCP server
.
Quarkus REST service that has users logged in with GitHub can access GitHub API directly. For example, Poem Service
can use a great Quarkus LangChain4j capability to mark REST Clients as tools to access GitHub API. See how it was done with the Google Calendar service.
In this demo, we show the Quarkus MCP Client's capability to interoperate with MCP servers and use access tokens to access secure MCP servers. We use GitHub OAuth2 because it is easily accessible to most developers.
Providers such as Keycloak
and Auth0
can create access tokens that are meant to be propagated from one service to another one. You will quite likely have your Quarkus MCP server implementations dealing with such tokens in the enterprise. Alternatively, when possible, the AI service application which accepts an authenticated user can request the token issuer to exchange its access token for another token that will be used to access the downstream MCP Server instead.
Quarkus AI Service applications may have to and can support a delegation flow such as GitHub access token → Poem Service → MCP Client → MCP Server tool → GitHub API
with additional security measures that the Quarkus team wil discuss in the future blog posts and the identity augmentation like the one shown in this demo.
Conclusion
In this blog post, we demonstrated how Quarkus MCP Client can access secure MCP servers by propagating access tokens available to the Quarkus LangChain4j AI Service application after the OAuth2 authorization code flow is complete.
Stay tuned for more upcoming blog posts about using MCP securely with Quarkus MCP client and MCP Server.
Enjoy !
